Return Gas boilers

  • Chaudiere-gaz-frisquet-hydromotrix-condensation-45kw
  • Chaudiere-gaz-frisquet-hydromotrix-condensation-coupe

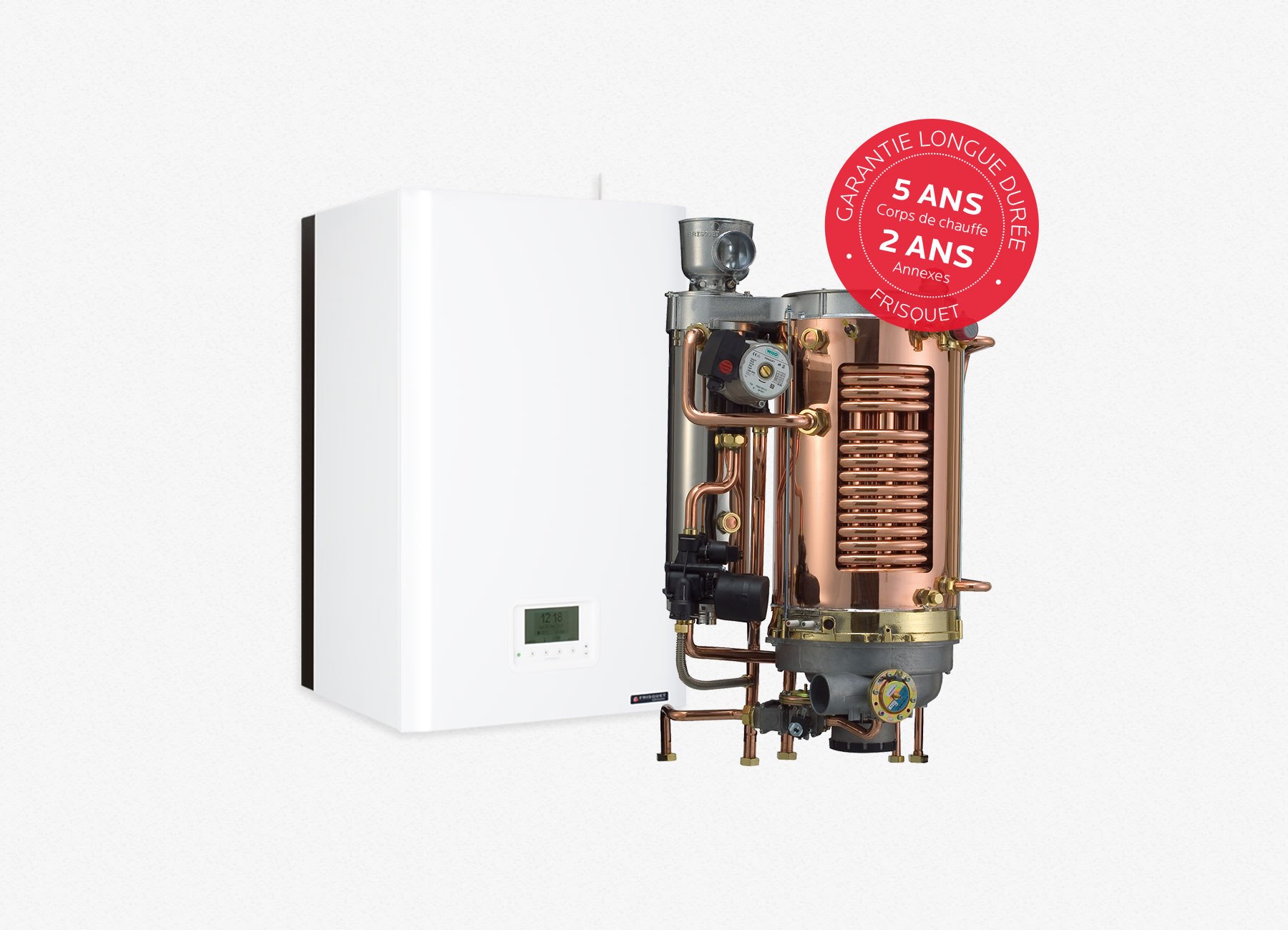

Wall-mounted boiler Condensing Visio

Hydromotrix Condensing Visio®

Power: 45 kW Heating only or mixed: Instant or stored hot water
Chauffage Classe A
ECS Classe B
  • High Energy Performance
  • Switchable heating power 32 or 45 kW
  • Eligible for 30% tax credit1
  • Class V control ECO RADIO SYSTEM Visio® (ŋ 3%)
  • Compatible with Frisquet Connect

19
Chauffage-1 Seasonal settings

The waranty of a great comfort

Combining the DUOSTEP® heating body and the triple-supply hot water heat exchanger, it brings together high-quality, efficient hot water production. It can therefore meet the needs of larger properties.

This boiler is available in heating-only version, or with an instant hot water production system. For greater hot water needs, it can be combined with a UPEC 120 litre tank to provide truly outstanding performance.

Technical characteristics
A full range of equipment as standard



ECO RADIO SYSTEM VISIO® appliance • Radio communication satellite unit • FLATFIRE® burner •READ® air/gas control• Electronic ignition • Gas ionization safety device • Dual electro-valve gas safety unit • Electronic overheating safety device • Electronic water level safety • Electronic frost-free safety unit • Expansion tank • 4-way motorised valve • Variable-speed low consumption circulator • Connectors for 2nd heating circuit • Anti-legionella programme • Automatic thermostat controller • Built-in hot water disconnection • Mineral wool heat insulation.

Power (kW) 45 UPEC 80 l UPEC 120 l
Twin heating power (kW) 32 or 45 - -
Dynamic power modulation (kW) 0 at 32 or 0 at 45 - -
DHW flow rate (l/min) 19 20 24
seasonal efficiency
with regulation (%)
93 - -
Nox rate on PCS (mg/kWh) 40 - -
Height (mm) 967 795 915
Width (mm) 710 (45 kW spé. chaufferie : 550) 460 520
Depth (mm) 480 477 515
Weight under load (kg) 135 115 161
Expansion Tank (l) 18 -
ø Fume outlets (mm) 80/125 - -
Fume connection Forced draught connexion and chimney adaptor

Frisquet Connect
your boiler obeys you at a distance

Manage your heating and hot water by controlling your Visio® boiler wherever you are, at home or away from home using your smartphone, tablet or computer. Download the Frisquet Connect app, or connect via the website frisquetconnect.

Accessories
Condensation Visio®

  • Frisquet Connect

  • H Visio module

  • Circuit connection kit for Visio H module

  • Circulator module

  • Outdoor sensor

  • Multi-function radio unit - swimming pool, alarm repeater, additional circulator

  • Telephone control / heat-pump measurement

  • UPEC hot water tanks

  • CESI – Domestic solar water heater

  • Boiler back panel

  • Vent outlets

  • Flue outlets (adaptor)

  • Solar relay kit for each boiler

Long-term warranty

The quality of our boilers means we can offer you a manufacturer's warranty much longer than the legal requirement, our long-term warranty1. This warranty applies to all our products, including the renewable energy appliances, as long as their commissioning and maintenance is carried out by a professional.

  • 5 years : heating body, burner, combustion chamber, circulator and stainless steel tank, tank for solar UPEC tank, solar collector
  • 2 years : additional parts / other components
