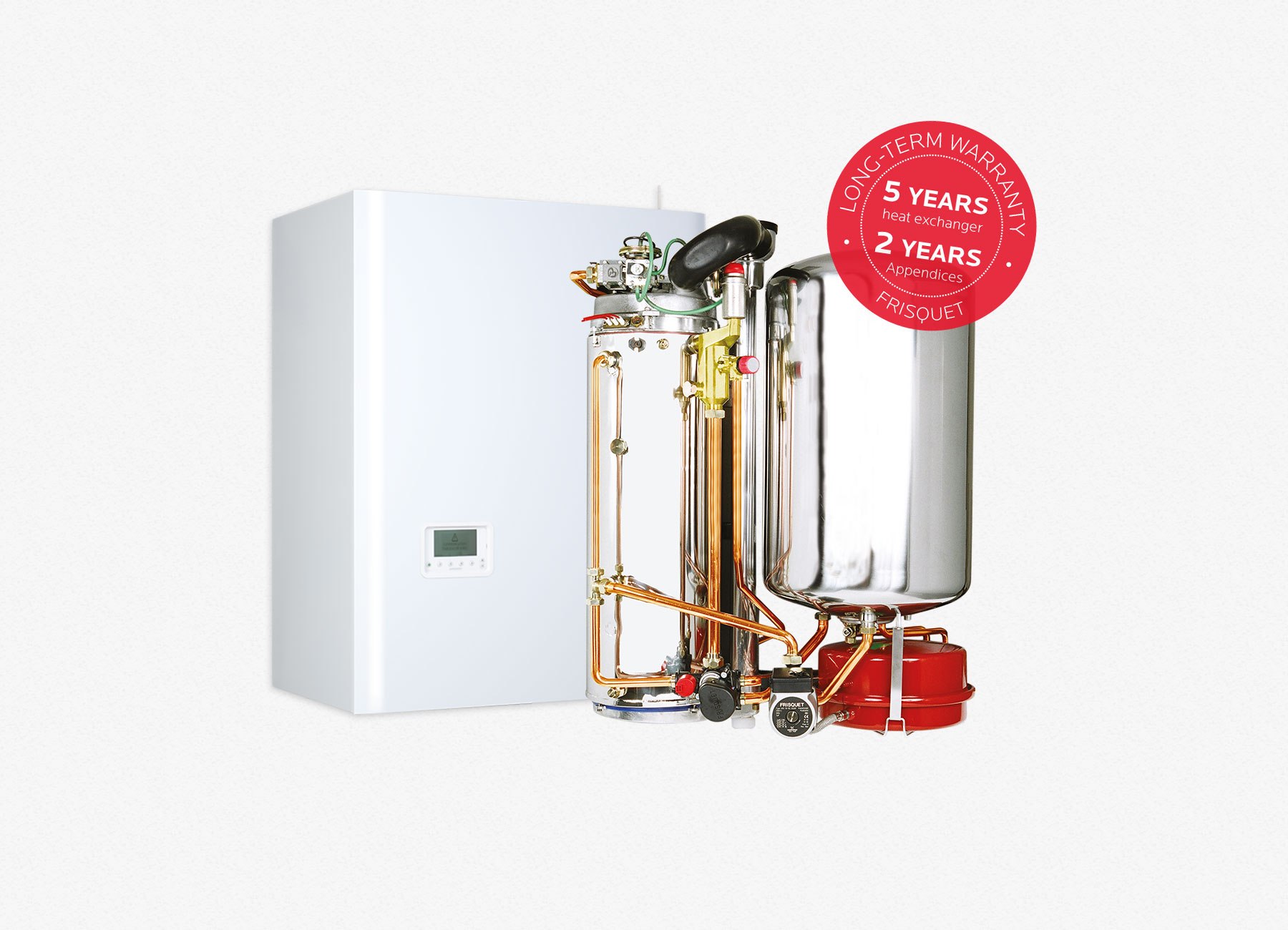

ECO RADIO SYSTEM VISIO® appliance • Radio communication satellite unit • FLATFIRE® burner •READ® air/gas control• Electronic ignition • Gas ionization safety device • Dual electro-valve gas safety unit • Electronic overheating safety device • Electronic water level safety • Electronic frost-free safety unit • Expansion tank • 4-way motorised valve • Variable-speed low consumption circulator • Connectors for 2nd heating circuit • Anti-legionella programme • Automatic thermostat controller • Built-in hot water disconnection • Mineral wool heat insulation.
| Power (kW) | 20 (with UPEC 80 l) | 20 (with UPEC 120 l) |
| Twin heating power (kW) | 14 or 20 | 14 or 20 |
| Dynamic power modulation (kW) | 0 at 14 or 0 at 20 | 0 at 14 or 0 at 20 |
| DHW flow rate (l/min) | 20 | 24 |
| seasonal efficiency with regulation (%) |
95 | 95 |
| Nox rate on PCS (mg/kWh) | 34 | 34 |
| Height (mm) | 1 017 | 1 337 |
| Width (mm) | 805 | 805 |
| Depth (mm) | 481 | 481 |
| Weight under load (kg) | 177 | 230 |
| Expansion Tank (l) | 11 | 11 |
| ø Fume outlets (mm) | Horizontale 60/100 Verticale 80/125 |
Horizontale 60/100 Verticale 80/125 |
| Fume connection | Forced draught connexion and chimney adaptor |
Manage your heating and hot water by controlling your Visio® boiler wherever you are, at home or away from home using your smartphone, tablet or computer. Download the Frisquet Connect app, or connect via the website frisquetconnect.
Frisquet Connect
H Visio module
Circuit connection kit for Visio H module
Circulator module
Outdoor sensor
Multi-function radio unit - swimming pool, alarm repeater, additional circulator
Telephone control / heat-pump measurement
CESI – Domestic solar water heater
Boiler back panel
Vent outlets
Flue outlets (adaptor)
Solar relay kit for each boiler
The quality of our boilers means we can offer you a manufacturer's warranty much longer than the legal requirement, our long-term warranty1. This warranty applies to all our products, including the renewable energy appliances, as long as their commissioning and maintenance is carried out by a professional.
