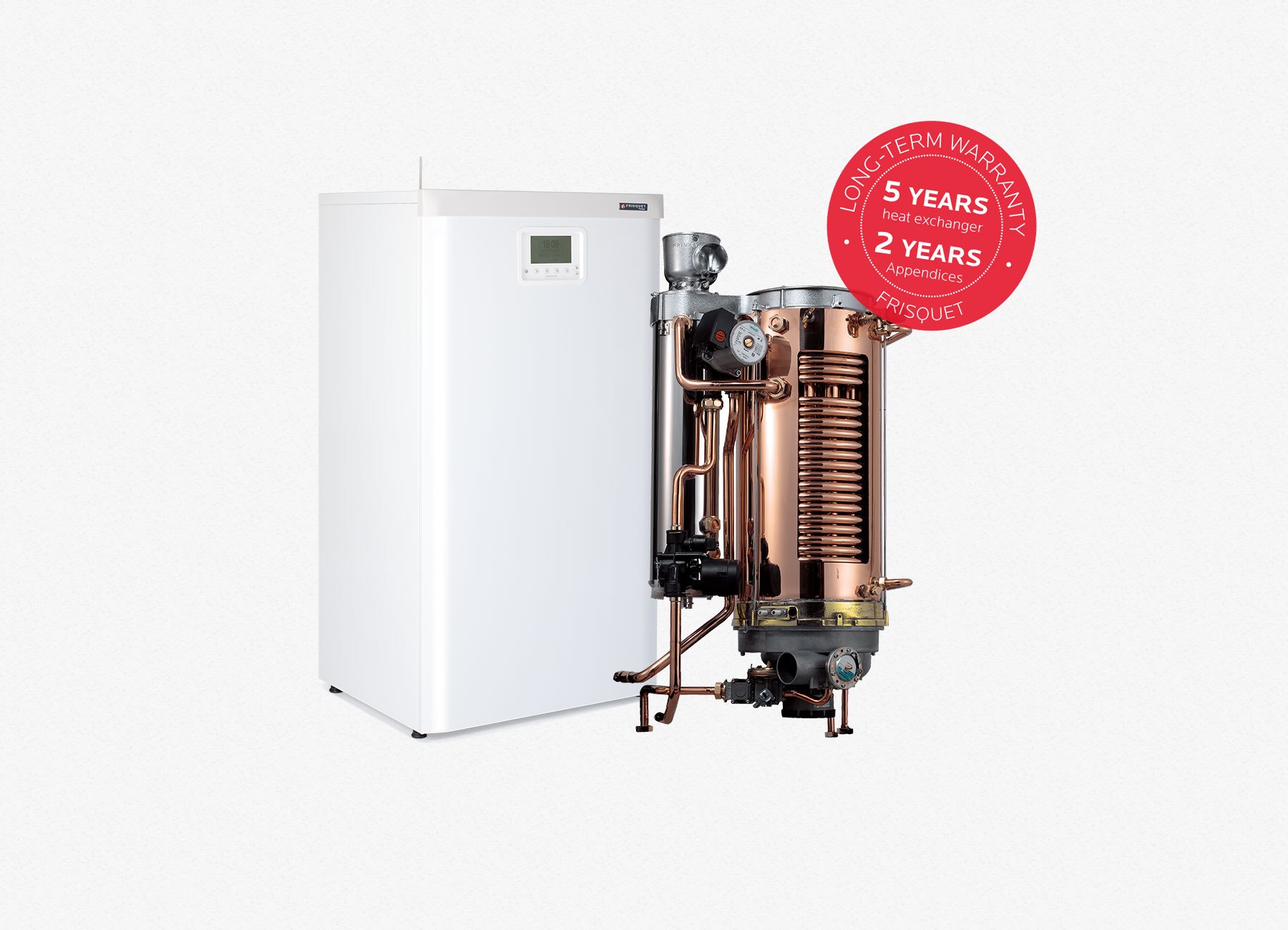

ECO RADIO SYSTEM VISIO® appliance • Radio communication satellite unit • FLATFIRE® burner •READ® air/gas control• Electronic ignition • Gas ionization safety device • Dual electro-valve gas safety unit • Electronic overheating safety device • Electronic water level safety • Electronic frost-free safety unit • Expansion tank • 4-way motorised valve • Variable-speed low consumption circulator • Connectors for 2nd heating circuit • Anti-legionella programme • Automatic thermostat controller • Built-in hot water disconnection • Mineral wool heat insulation.
| Power (kW) | 25 | 32 | Avec UPEC 120 l - Vertical | Avec UPEC 120 l - Horizontal |
| Twin heating power (kW) | 18 or 25 | 23 or 32 | - | - |
| Dynamic power modulation (kW) | 0 at 18 or 0 at 25 | 0 at 23 or 0 at 32 | - | - |
| DHW flow rate (l/min) | 12,5 | 15,5 | 24 | 24 |
| seasonal efficiency with regulation (%) |
95 | 95 | - | - |
| Nox rate on PCS (mg/kWh) | 20 | 23 | - | - |
| Height (mm) | 1 035 | 1 035 | 1 862 (45 kW mixte accumulée : 1 915) | 1035 (45 kW mixte accumulée : 1 090) |
| Width (mm) | 555 | 555 | 555 | 1 113 |
| Depth (mm) | 570 | 570 | 570 (45 kW mixte accumulée : 544) | 570 (45 kW mixte accumulée : 544) |
| Weight under load (kg) | 90 | 105 | - | - |
| Expansion Tank (l) | 18 | 18 | - | |
| ø Fume outlets (mm) | Horizontale 60/100 Verticale 80/125 |
Horizontale 60/100 Verticale 80/125 |
- | - |
| Fume connection | Forced draught connexion and chimney adaptor | |||
Manage your heating and hot water by controlling your Visio® boiler wherever you are, at home or away from home using your smartphone, tablet or computer. Download the Frisquet Connect app, or connect via the website frisquetconnect.
Frisquet Connect
H Visio module
Circuit connection kit for Visio H module
Circulator module
Outdoor sensor
Multi-function radio unit - swimming pool, alarm repeater, additional circulator
Telephone control / heat-pump measurement
UPEC hot water tanks
CESI – Domestic solar water heater
Boiler back panel
Vent outlets
Flue outlets (adaptor)
Solar relay kit for each boiler
The quality of our boilers means we can offer you a manufacturer's warranty much longer than the legal requirement, our long-term warranty1. This warranty applies to all our products, including the renewable energy appliances, as long as their commissioning and maintenance is carried out by a professional.
