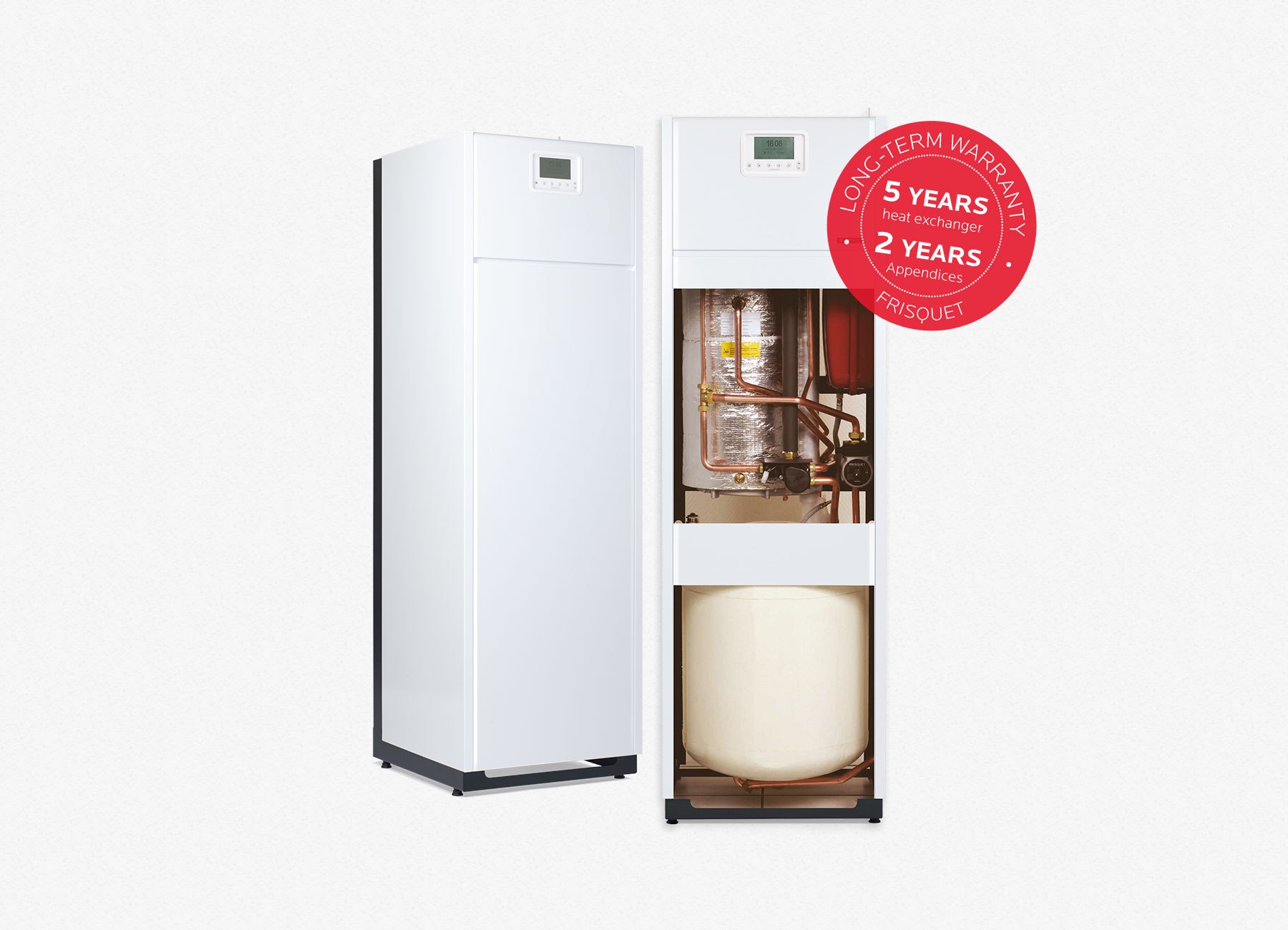

ECO RADIO SYSTEM VISIO® appliance • Radio communication satellite unit • FLATFIRE® burner •READ® air/gas control• Electronic ignition • Gas ionization safety device • Dual electro-valve gas safety unit • Electronic overheating safety device • Electronic water level safety • Electronic frost-free safety unit • Expansion tank • 4-way motorised valve • Variable-speed low consumption circulator • Connectors for 2nd heating circuit • Anti-legionella programme • Automatic thermostat controller • Built-in hot water disconnection • Mineral wool heat insulation.
| Puissance nominale (kW) | 20 |
| BI-Puissance chauffage (kW) | 14 ou 20 |
| Modulation de puissance (kW) chauffage utile | 0 à 14 ou 0 à 20 |
| Débit ECS (l/min) | 18,5 |
| Efficacité énergétique saisonnière avec régulation (%) |
95 |
| Taux Nox sur PCS (mg/kWh) | 34 |
| Hauteur (mm) | 1 720 |
| Largeur (mm) | 540 |
| Profondeur (mm) | 600 |
| Poids en charge (kg) | 188 |
| Capacité vase expansion (l) | 18 |
| ø Buse (mm) | Horizontale 60/100 Verticale 80/125 |
| Sorties fumées | Raccordement Ventouse & adaptateur cheminée |
Manage your heating and hot water by controlling your Visio® boiler wherever you are, at home or away from home using your smartphone, tablet or computer. Download the Frisquet Connect app, or connect via the website frisquetconnect.
Frisquet Connect
H Visio module
Circuit connection kit for Visio H module
Circulator module
Outdoor sensor
Multi-function radio unit - swimming pool, alarm repeater, additional circulator
Telephone control / heat-pump measurement
CESI – Domestic solar water heater
Boiler back panel
Vent outlets
Flue outlets (adaptor)
Solar relay kit for each boiler
The quality of our boilers means we can offer you a manufacturer's warranty much longer than the legal requirement, our long-term warranty1. This warranty applies to all our products, including the renewable energy appliances, as long as their commissioning and maintenance is carried out by a professional.
