Floor-standing boiler Condensing Visio

Prestige Condensing Visio®

Power: 45 kW Heating only or mixed: stored hot water (120l)
Chauffage Classe A
  • High Energy Performance
  • Switchable heating power 32 or 45 kW
  • Eligible for 30% tax credit1
  • Class V control ECO RADIO SYSTEM Visio® (ŋ 3%)
  • Compatible with Frisquet Connect
Chauffage
Chauffage-1 Seasonal settings

Power and flexibility

This boiler is especially suited to large dwellings, where greater comfort and energy savings are required.

Its full range of standard fittings means it can be connected directly to a UPEC 120 litres tank, to form a horizontal or vertical assembly, and deliver hot water in abundance. This appliance can supply several taps at once, without any change in flow or temperature.

Technical characteristics
A full range of equipment as standard

ECO RADIO SYSTEM VISIO® appliance • Radio communication satellite unit • FLATFIRE® burner •READ® air/gas control• Electronic ignition • Gas ionization safety device • Dual electro-valve gas safety unit • Electronic overheating safety device • Electronic water level safety • Electronic frost-free safety unit • 4-way motorised valve • Variable-speed low consumption circulator • Connectors for 2nd heating circuit • Anti-legionella programme • Automatic thermostat controller • Built-in hot water disconnection • Mineral wool heat insulation.

Power (kW) 45 With UPEC 120 l - Vertical With UPEC 120 l - Horizontal
Twin heating power (kW) 32 or 45 - -
Dynamic power modulation (kW) 0 at 32 or 0 at 45 - -
DHW flow rate (l/min) - 24 24
seasonal efficiency
with regulation (%)
93 - -
Nox rate on PCS (mg/kWh) 40 - -
Height (mm) 1 090 1 915 1 090
Width (mm) 555 555 1 113
Depth (mm) 484 544 544
Weight under load (kg) 112 - -
Expansion Tank (l) 18 -
ø Fume outlets (mm) 80/125 - -
Fume connection Forced draught connexion and chimney adaptor

Frisquet Connect
your boiler obeys you at a distance

Manage your heating and hot water by controlling your Visio® boiler wherever you are, at home or away from home using your smartphone, tablet or computer. Download the Frisquet Connect app, or connect via the website frisquetconnect.

Accessories
Condensation Visio®

  • Frisquet Connect

  • H Visio module

  • Circuit connection kit for Visio H module

  • Circulator module

  • Outdoor sensor

  • Multi-function radio unit - swimming pool, alarm repeater, additional circulator

  • Telephone control / heat-pump measurement

  • CESI – Domestic solar water heater

  • Boiler back panel

  • Vent outlets

  • Flue outlets (adaptor)

  • Solar relay kit for each boiler

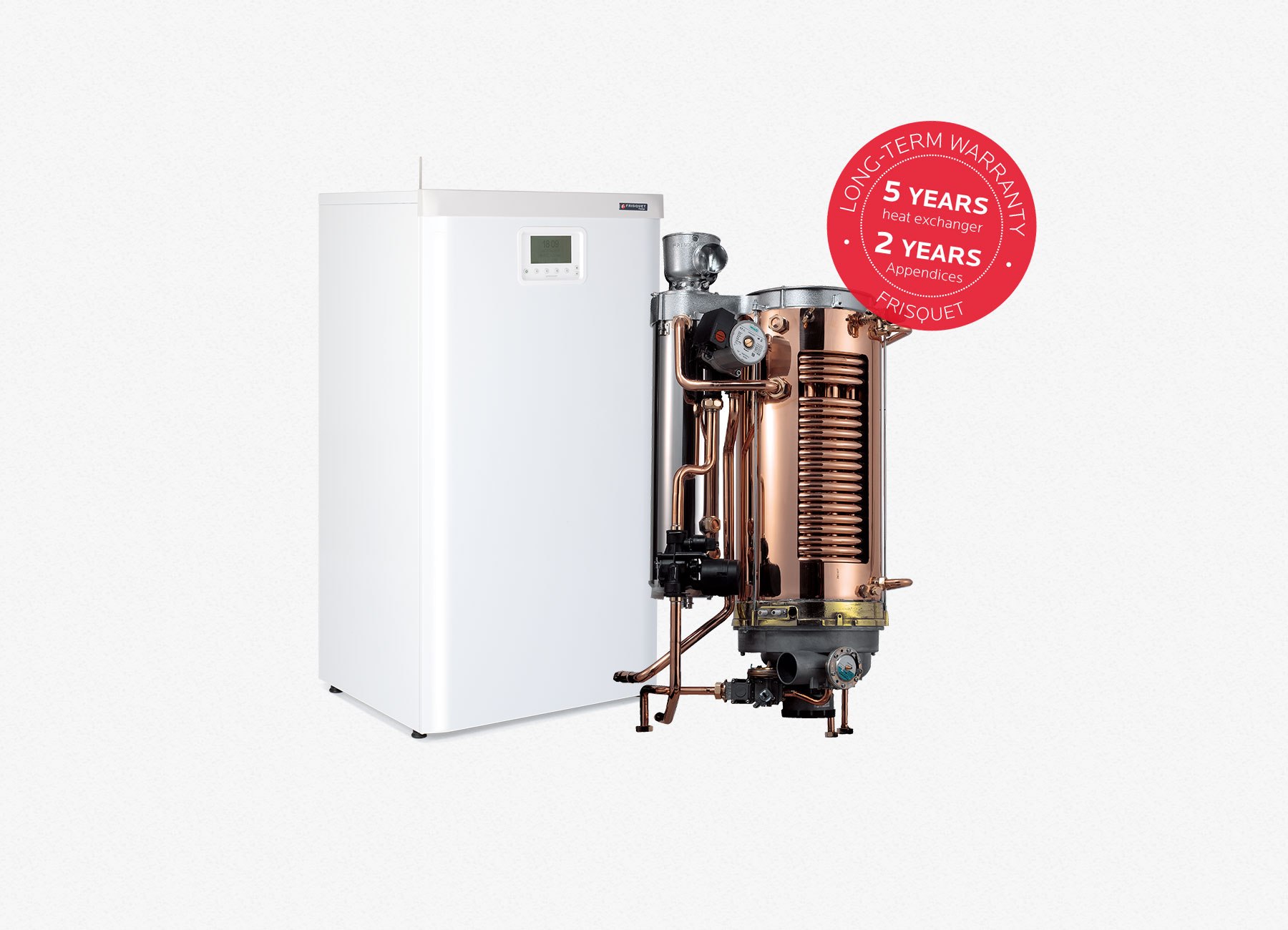

Long-term warranty

The quality of our boilers means we can offer you a manufacturer's warranty much longer than the legal requirement, our long-term warranty1. This warranty applies to all our products, including the renewable energy appliances, as long as their commissioning and maintenance is carried out by a professional.

  • 5 years : heating body, burner, combustion chamber, circulator and stainless steel tank, tank for solar UPEC tank, solar collector
  • 2 years : additional parts / other components
